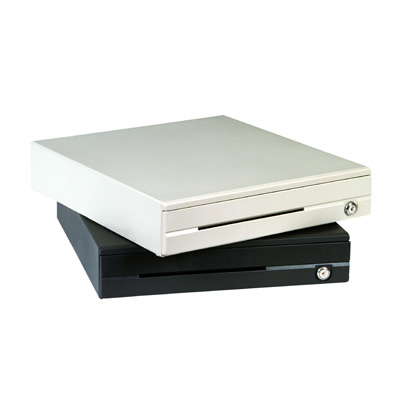

Logic Controls CR-3000 Compact Cash Drawer Blk

Price:
CAD $219.00
SKU:
1004
Weight:
10.00 LBS
Shipping:
Calculated at checkout
Quantity:


Product Description

Overview

Unparalleled Reliability and Value
Logic Controls cash drawers offer unparalleled reliability and value, with failure rates one-fifth that of other leading cash drawer vendors according to industry sources. Best of all, these high quality cash drawers are available at prices that drive superior value.

Compact, Efficient and Secure
The CR3000 series of standard duty cash drawers is compact in size, enabling retailers to utilize scarce counter or shelf space for more important functions. The units make very efficient use of internal space, however, with the till being almost the same size as those found in larger drawers. The CR3000 series also comes with important security features: all metal construction, no exposed screws, and three position locks.

Works with Any System
Logic Controls cash drawers work will all major brands of POS printers and offers a wide selection of interfaces. CR3000 Series?interfaces include printer driven, serial, USB, programmable parallel or serial, pass-through, and OPOS. The CR3001, in fact, is a 4-in-1 multi-interface cash drawer with an I/O port expansion hub. The serial and USB cash drawers are port-powered, while CR3001 units come with either 120V or 220V power adapters.
Features:
Supports all major POS printers
Wide selection of interfaces: printer-driven, RS232C, USB, programmable parallel or serial, pass-throug and OPOS
Port-powered drawers available with serial or USB interface. No power adapter required
High security design with all metal construction and no external screws
Three position lock for maximum cash security
Small form factor without sacrificing till size
Adjustable bill and coin compartments
Media slot for checks and large bills
4-in-1 multi-interface cash drawer with I/O port expansion hub
Available in beige and dark gray, 120V and 220V

Specifications

MECHANICAL
Weight14.3 lbs
Dimention (in inches)
Width x Depth x Height
Bill and coin tray

15.7” x 16.1” x 3.3”
Adjustable slots



ELECTRICAL
CR3000 (Control signal from POS printer)
Pulse amplitude
Pulse width
Pulse duty cycle

12 to 24 volts DC
100 to 200 milliseconds
10% max
CR3001
Power adapter input
Power adapter output
Power adapter current

120VAC; 220VAC optional
12 VAC
1000ma
CR3002
Pulse amplitude
Pulse width
Pulse duty cycle

12 volts DC
50u sec - 6.7 m sec
20% min.



INTERFACE
CR3000 (Printer Driven)Connects to POS printer drive circuit via cable
CR3001 (Smart Serial Interface)
  Serial input
    Data format
    Protocol (*default values)
      Baud Rate
      Parity
      Data Bits
  Parallel input
    Data format


RS232C

150, 300, 600, 1200, 2400, 4800, 9600*, 19200
None*, Odd, Even
7, 8*

Centronics interface
CR3002RS232C, any protocol, bus powered



OPEN DRAWER COMMAND
CR3000 (Printer Driven)Pulse from printer drive circuit
CR3001
  Printer
  Dedicated RS232C
  Non-dedicated RS232C

  Parallel

Pulse from printer drive circuit
Any software transmitted data
Programmable security code (1-255 hex, preset to 07 hex)
Programmable security code (1-255 hex, preset to 07 hex)
CR3002Any software transmitted data



NOTE
CR3000 (Printer Driven)Logic Controls supports most POS printers. Interface cable ordered seperately. Please specify POS printer type when ordering cables.
CR3001Power adapter, keys, serial interface cable (to computer), and manual supplied. For parallel connection user must supply cables.
CR3002No power adapter required. Keys and serial interface cable supplied.
